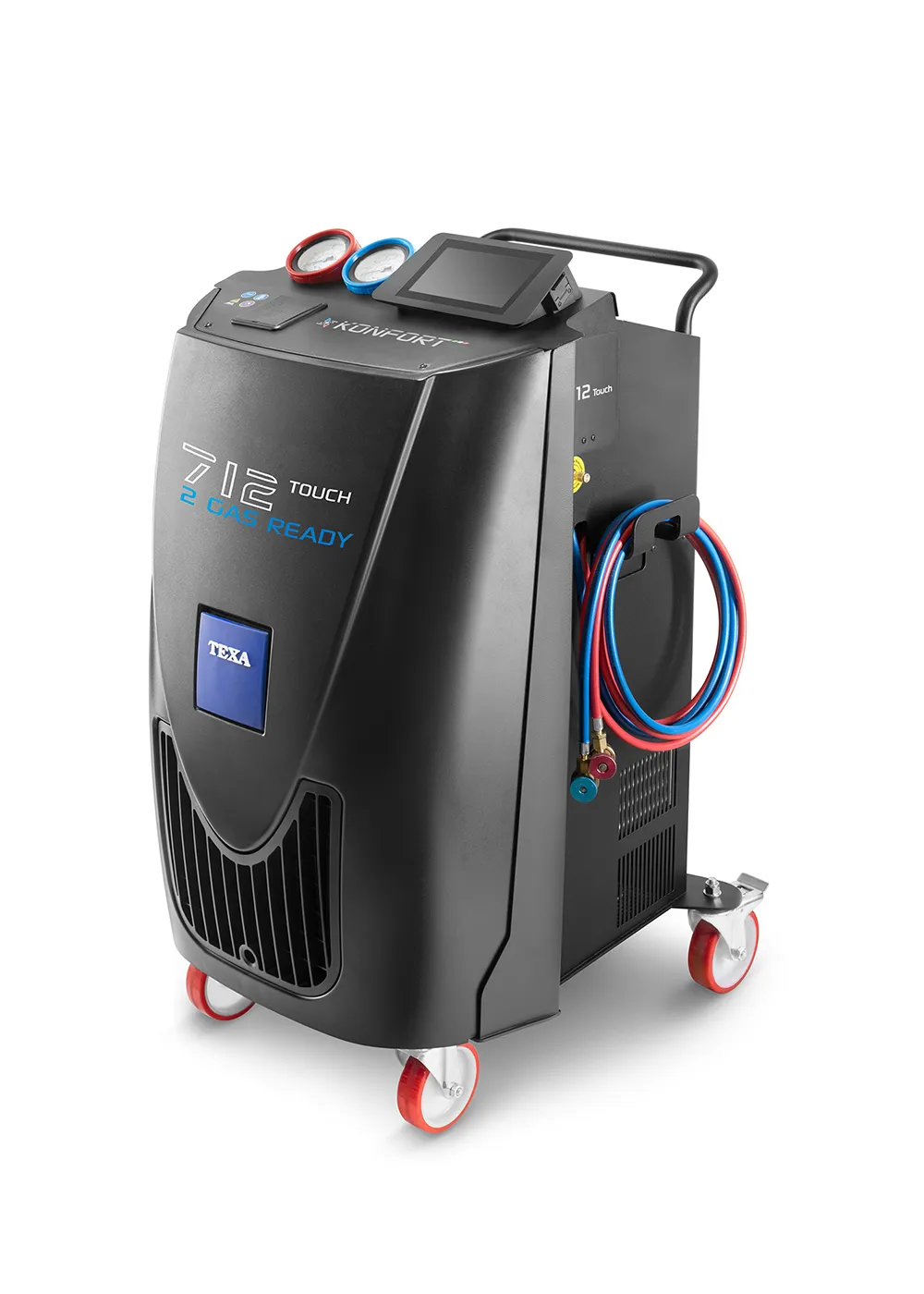

TEXA KONFORT 712 TOUCH Automotive A/C Recharge Station – Dual Gas Ready (R134a & R1234yf)

₨ 1,880,000

Category: Diagnostic Scan Tools

Description
Reviews (0)

Discover KONFORT 712 TOUCH Simple, quick, smart just a “touch” for recharging

KONFORT 712 TOUCH
2 GAS READY

It is a mid-range model which boasts the typical technical features of the top-range models such as

KONFORT 712 the automatic maintenance service management
the measuring of the amount of oil recovered with an electronic scale.

KONFORT 712 It can be purchased in the R134a or R1234yf version.

KONFORT 712 A large display for great results

The KONFORT TOUCH charging stations are equipped with a 7-inch colour multi-touch screen display, which gives them great usability and allows always having a clear view of the operations to perform. Moreover, the innovative graphic interface has been developed to ensure a really intuitive software user experience, making it easier to quickly read the data displayed.

Paper reports always at hand

Besides the built-in thermal printer, KONFORT TOUCH allows printing the reports of the services performed also via Wi-Fi and in A4 format, using any printer connected to the workshop’s Wi-Fi network.

KONFORT APP

Thanks to a dedicated APP, the stations communicate with Android and iOS smartphones, so that operators can follow the progress of the service and charging procedures also remotely.

The technician receives a notification in case of faults and when the service is complete. The new APP also allows you to view and manage the performed maintenance services easily, even when the station is turned off.

KONFORT 712 Android operating system everything is even easier

The KONFORT TOUCH stations are designed to be extremely well-functioning and achieve the maximum
simplification of the maintenance and charging operations.

To reach this goal, the Android 10 embedded operating system is used.

This choice allows better familiarity in activating the various controls, with a very intuitive visual language
and an interface rich in infographics.

The software updates are performed automatically and securely.

KONFORT 712 Simple and intuitive user interface
starting the service is immediate

The interface is designed to provide all the necessary information in a single screen; this way, users can have
direct access to the most useful operations. In next to no time, you will move from the initial station activation
phases to carrying out the service.

The menu, which can be browsed really easily, makes the most of the large display and minimises the “steps”
required to start a charging service. Moreover, the search mode “Smart selection by model” allows you to find
the vehicle you are working on by simply entering one or more keywords.

Below is an overview of the main software screens, from the service selection to the charging phases and the
remote after-sales assistance request:

Smart selection by model

Enter a keyword in order to find more rapidly the vehicle you wish to work on. It also works with words in proximity.

A wide range of accessories
for expanded functionality

The KONFORT TOUCH models can be used in combination with a range of optional accessories that expand
their functionality and potentiality, such as:

A/C system efficiency kit

It performs a dynamic check on the output temperature of the A/C system vents.
At the end of the test, the KONFORT TOUCH charging station produces a detailed report certifying the actual performance of the vehicle’s A/C system.

Flushing kit

Flushing is the mechanical operation carried out to clean the air conditioning system components of a vehicle.
TEXA offers a kit that includes: a supplementary 6-litre capacity tank with a contamination indicator, a stainless steel filter which can easily be removed for cleaning, high flow hoses with 5-mm internal diameter, a case containing the complete series of universal adapters.

Refrigerant identifier kit

This device immediately identifies the type of refrigerant used in the vehicle, R134a or R1234yf, and checks its purity.
The entire operation takes approximately one minute. If the refrigerant is found to be unsuitable or contaminated, the station warns the technician and stops the operation.

Thermal printer

It is possible to install a very useful thermal printer, to generate at any time an accurate report of all the operations performed.

KONFORT 712 Production and quality certified
ISO TS 16949 quality system

The KONFORT TOUCH range benefits from new developments in materials, technologies and automated
production procedures that resulted in TEXA gaining an ISO TS 16949 certification.

All phases are subject to strict quality control, from component selection and development to machining, assembly,
distribution and after-sales service.

After assembly, the stations enter the testing department where the electrical system is tested and the scales
sensors and pressure transducers are calibrated. Functional testing is then performed to verify that all components
and devices respond correctly and perform according to specifications.

Rigorous testing eliminates the risk of defects in the hydraulic system and ensures that all parts are effectively
sealed. The final stage of testing takes place in a special sealed chamber and involves the injection of helium into
the tank and the recharge circuit. Helium is used because its particularly small molecules are able to find even
minute leaks.

The KONFORT charging stations conform to European CE/PED safety standards, to the American standards
governing refrigerant purity (SAE J2099 for both R134a and R1234yf) and to those governing efficiency in the
recovery of at least 95% of used refrigerant (SAE J2788 for R134a and SAE J2843 for R1234yf).
