Product Description for Zenith Z7 Lite

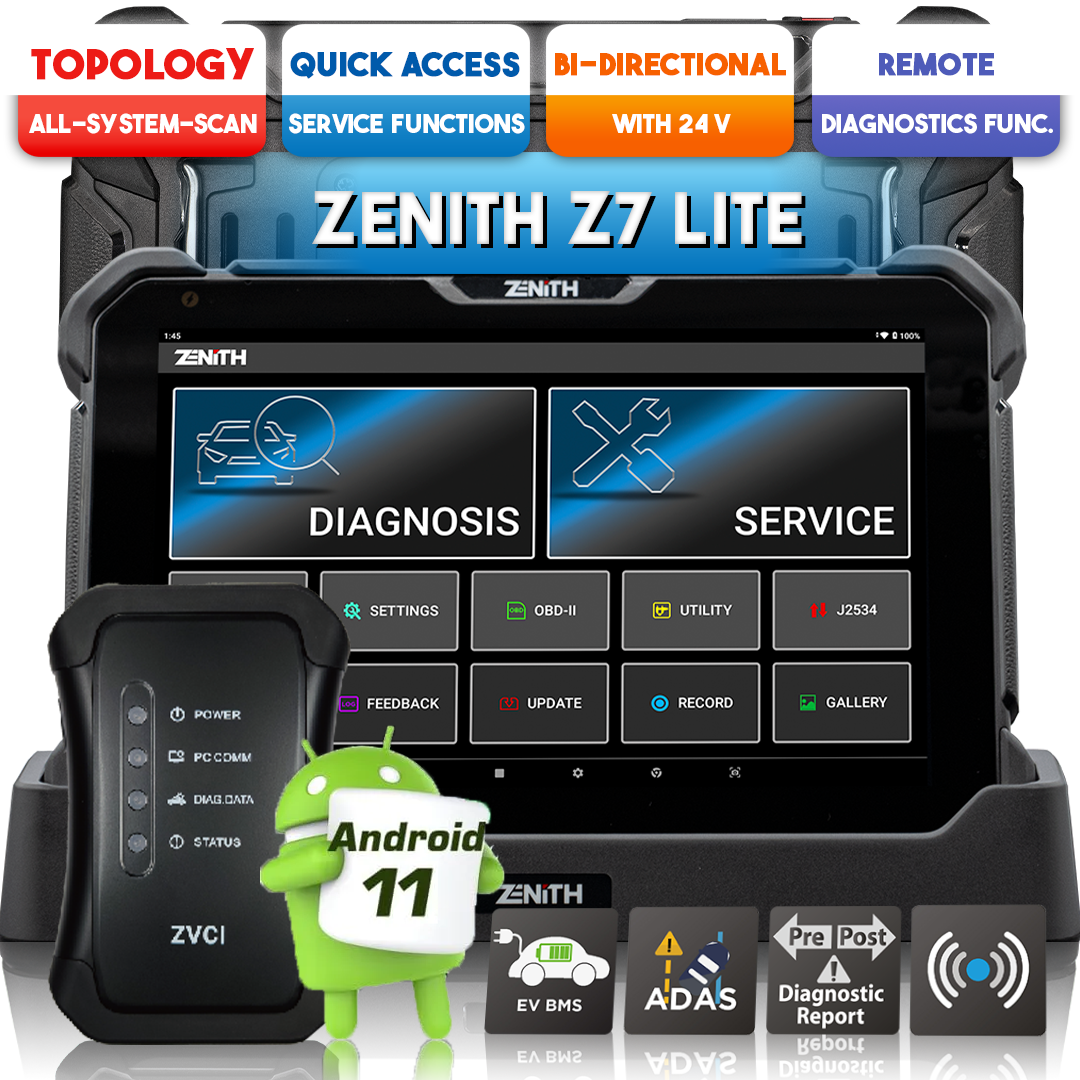

Zenith Z7 Lite – A True All-In-ONE Wireless Vehicle Diagnostic Scan Tool

The Zenith Z7 Lite is an innovative, cutting-edge diagnostic scan tool designed to support a wide range of vehicle brands, offering advanced bi-directional diagnostic capabilities for precise and efficient vehicle maintenance. With its powerful hardware, user-friendly interface, and extensive protocol support, the Zenith Z7 Lite is an essential tool for automotive professionals.

Ultra Fast System Search:

• Experience ultra-fast system searches that automatically detect the VIN, model year, model name, engine type, and other critical information, streamlining the diagnostic process.

Topology Scan:

• Perform comprehensive scans of all vehicle systems, report fault codes, and access advanced diagnostic functions with the ultra-fast Topology scan feature.

Service Function:

• Save time with shortcuts to the most frequently used functions in workshops, eliminating the need to navigate through complex menu systems.

FCA SGW Ready:

• Gain Security Gateway access on the latest Fiat and Chrysler models via AutoAuth.

24V Trucks:

• Support bi-directional communications for Asian light-duty to medium-duty trucks with 24V systems.

Full Text Description:

• View long-text DTC (Diagnostic Trouble Code) descriptions in full screen for detailed information. Easily zoom in and out of descriptions for better readability.

Search DTC:

• Search DTC descriptions effortlessly by clicking the magnifying button next to the description, eliminating the need to browse the web for codes.

Live Data:

• Analyze sensor data intuitively and quickly. View and compare multiple live data points, search and select desired items, and display data on a single screen.

Actuation Test:

• Perform advanced actuation tests with combined live data and graphing, allowing real-time performance checks of testing components.

Pre & Post Diagnostic Report:

• Create diagnostic reports with pre-scan and post-scan results easily. Save reports as PDF files, print them via Bluetooth printer, or send them to an email address.

Battery Management System:

• Check detailed battery information for EV and HEV vehicles, including State of Charge (SOC), State of Health (SOH), voltage, current value, and temperature of each cell.

Specifications:

• CPU: Octa Core Processor 2.2 GHz
• Operating System: Android 11
• System Memory: 4G RAM / 64G Internal Storage
• External Memory: Micro SD Card Slot (up to 256GB)
• LCD: 10.1 inch FHD (1920 x 1200)
• Input Devices: Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
• Camera: 8 megapixel auto-focus with LED flash
• Sound: Loud Speaker, 1 Microphone
• Rechargeable Battery: Li-ion 3.85V, 5800mAh
• Operating Voltage: Main Unit (DC 5V)
• Sensors: Ambient Light, Gyroscope, Accelerometer
• Dimensions: Terminal: 275 x 187 x 36mm; VCI: 130 x 89 x 32mm
• External Port: USB-B Type (Normal Type)
• Network: RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC

Supported Communication Protocols:

• CAN: High speed, Low speed, Single
• ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000
• SAE-J1708, SAE-J1587
• J1850: PWM/VPW
• Melco Pull-Down

Enhance your vehicle diagnostics and maintenance with the Zenith Z7 Lite – your all-in-one solution for advanced and efficient vehicle scanning and diagnostics
